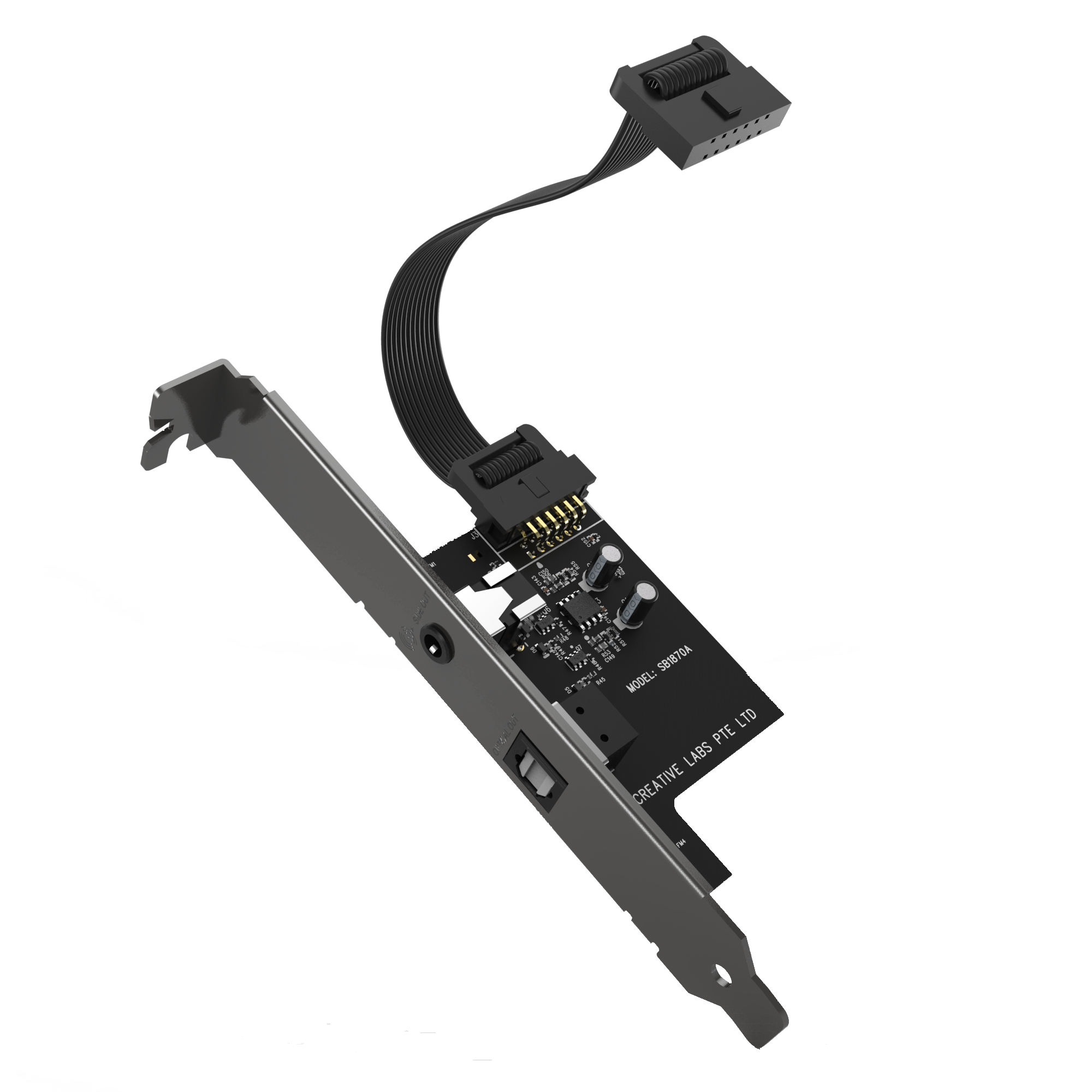

Sound Blaster Audigy Fx V2 DBPro
Expansion Card for Sound Blaster Audigy Fx V2
Features
Overview
Complete your audio upgrade with the Sound Blaster Audigy Fx V2 DBPro-an optional daughterboard expansion card with added functionalities designed to complement the Sound Blaster Audigy Fx V2. The Sound Blaster Audigy Fx V2 DBPro comes with DSD256 playback support, additional side channels for immersive 7.1 discrete surround, and an optical-out port for an expanded option to connect to an external amplifier.
7.1 Virtual Surround
7.1 Discrete Surround
Optical-Out
DSD256 Playback
7.1 SURROUND SOUND
Experience better immersion with discrete 7.1 surround for multi-directional audio in your games and movies with the Sound Blaster Audigy Fx V2 DBPro. The sound card's additional side channels upgrade your cinematic experience from 5.1 to 7.1 surround. Additionally, you can plug in your headphones for an equally immersive 7.1 virtual surround listening experience.
CONNECT CONVENIENTLY
The Sound Blaster Audigy Fx V2 DBPro comes with an additional optical-out port for your external digital amplifiers and individual 7.1 playback end points for your Front, Side, and Rear panel stereo outputs. For convenience, the headphone / front port also acts as a 4-pole headset port, so you can easily connect your headset to it.
HOW TO INSTALL THE DBPRO
)

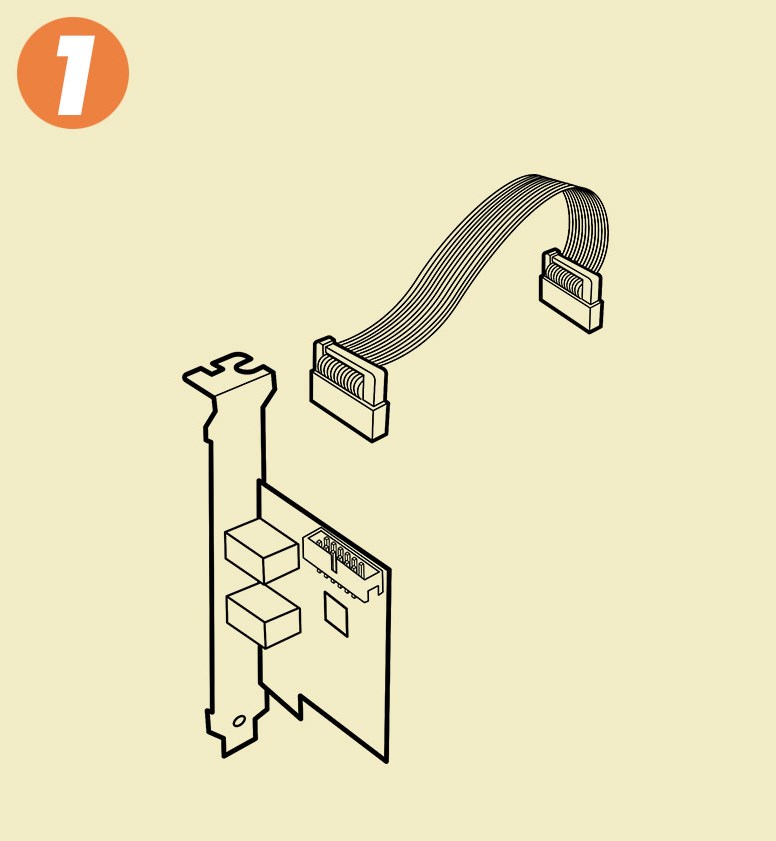

Attach the provided interconnect cable to Sound Blaster Audigy Fx V2 DBPro.
)

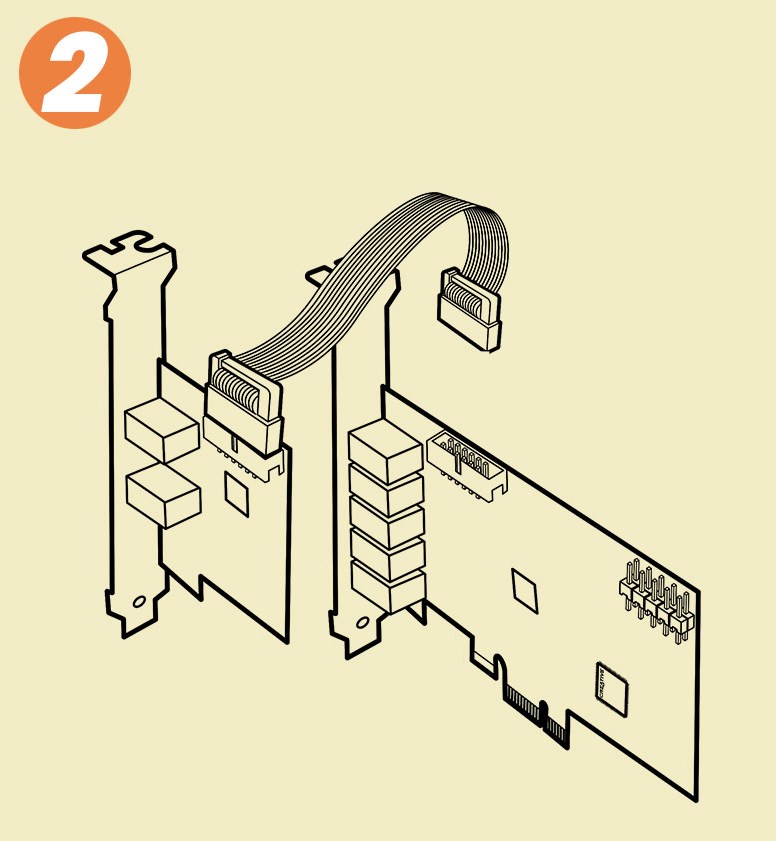

Inside the PC, attach the other end of the interconnect cable to Sound Blaster Audigy Fx V2's DBPro connector.
)

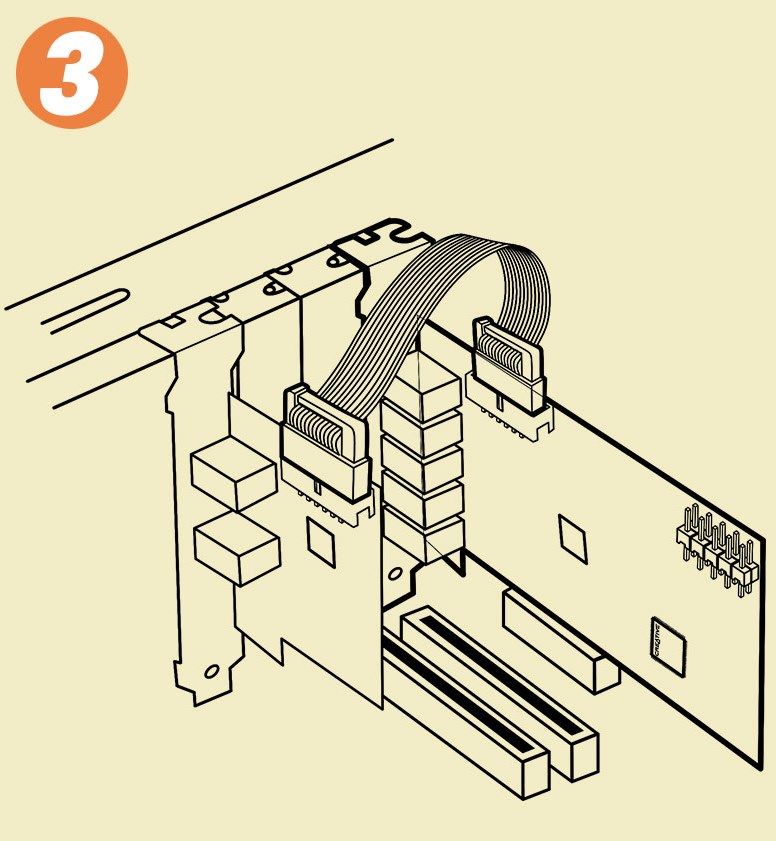

Mount the Sound Blaster Audigy Fx DBPro onto any available mount bracket in the PC, and you're done!
AUDIO BOOST WITH SOUND BLASTER AUDIGY Fx V2
On its own, the Sound Blaster Audigy Fx V2 features 5.1 surround sound, high-quality audio with 120 dB SNR, 24-bit 192 kHz playback, and our latest audio innovation-SmartComms Kit-a suite of smart communication features designed to improve the way you communicate online. It is the perfect addition to your PC rig for an instant audio enhancement and to offload your PC's load capacity for better performance in other critical tasks, like graphics.
A Closer Look
Specifications
-
Weight
- DBPro Board: 32g / 1.13 oz, Interconnect Cable:6g / 0.21 oz, Half-Height Bracket: 12g / 0.42 oz
-
Dimensions
- DBPro Board: 121 x 54.7 x 21.6 mm / 4.76 x 2.15 x 0.85 inches, Half-height Bracket: 80 x 21.6 mm / 3.15 x 0.85 inches, DBPro Cable (Length): 162 mm / 6.38 inches
-
Direct Mode
- Optical Out (Stereo)*: PCM 16-bit, 44.1, 48.0, 88.2, 96.0, 192.0 kHz
PCM 24-bit, 44.1, 48.0, 88.2, 96.0, 192.0 kHz
Line-out (Side Channel): PCM 16-bit, 44.1, 48.0, 88.2, 96.0. 192.0 kHz
PCM 24-bit, 44.1, 48.0, 88.2, 96.0. 192.0 kHz
-
DSD Playback
- Headphone/Line Out (Stereo): Native DSD: DSD64, DSD128, DSD256
DoP: DSD64Refer to Sound Blaster Audigy Fx V2 specifications for more details
-
Connectivity Options (Main)
- 1 x TOSLINK Optical Out, 1 x ⅛″ Side Out Jack
-
Power
- PCI-e 1x–16x Bus, Half-height Profile (Full height and half height brackets provided)
System Requirements
- Sound Blaster Audigy Fx V2 (Main board)
- Intel® Core™i3 or AMD® equivalent processor
- Intel, AMD, or 100% compatible motherboard
- Microsoft® Windows 10 32 / 64-bit or higher
- Available PCI-e slot
Package Contents
- Sound Blaster Audigy Fx V2 DBPro
- Interconnect Cable
- Half-height Bracket (Full height bracket mounted on board)
- Quick Start Leaflet
- Warranty Leaflets
Warranty
1-year Limited Hardware Warranty
